Precision AC/DC Current Clamp Meter with Dual Display

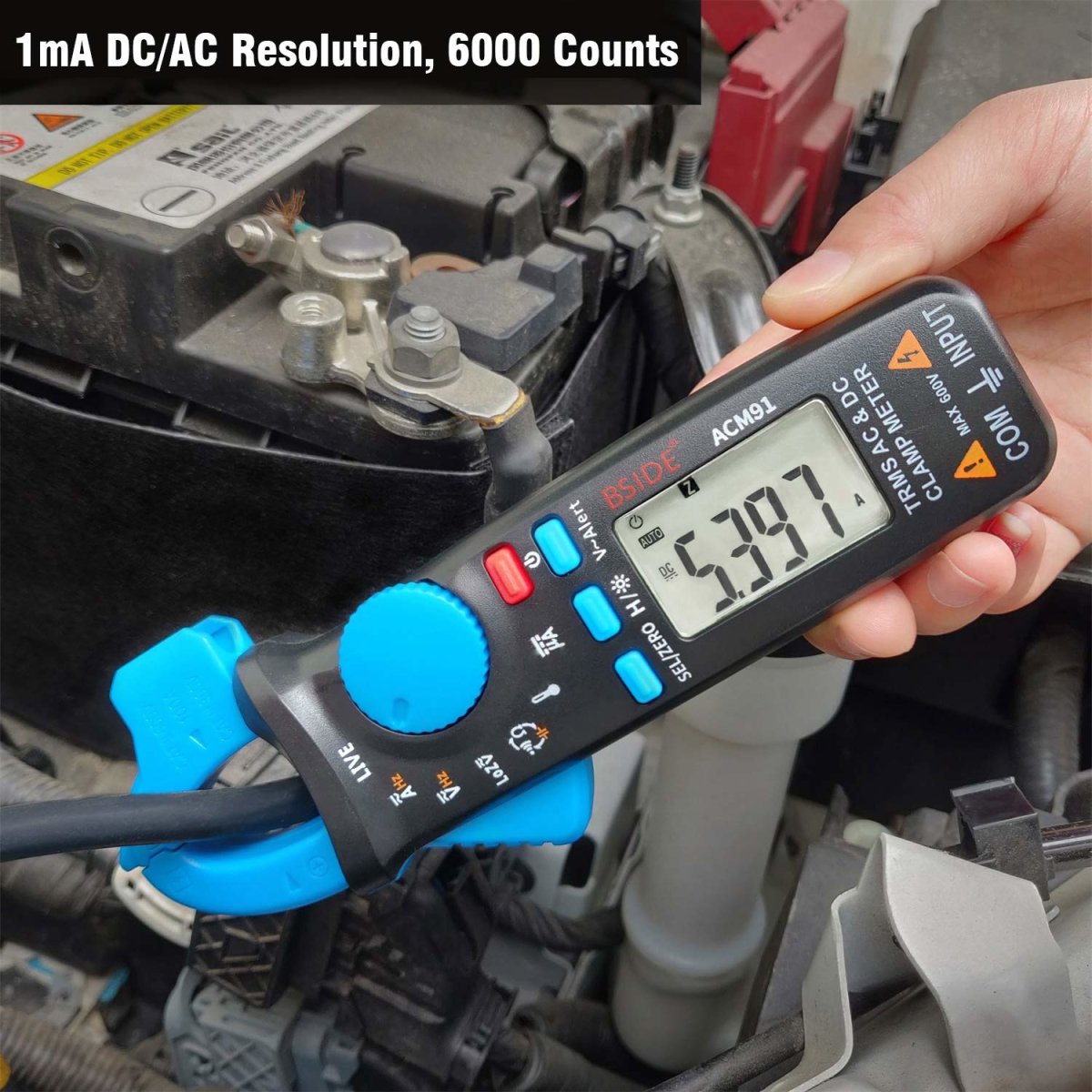

Accurate Measurements: Experience precise readings with a sensitivity of 1mA for both AC and DC currents using the clamp feature.

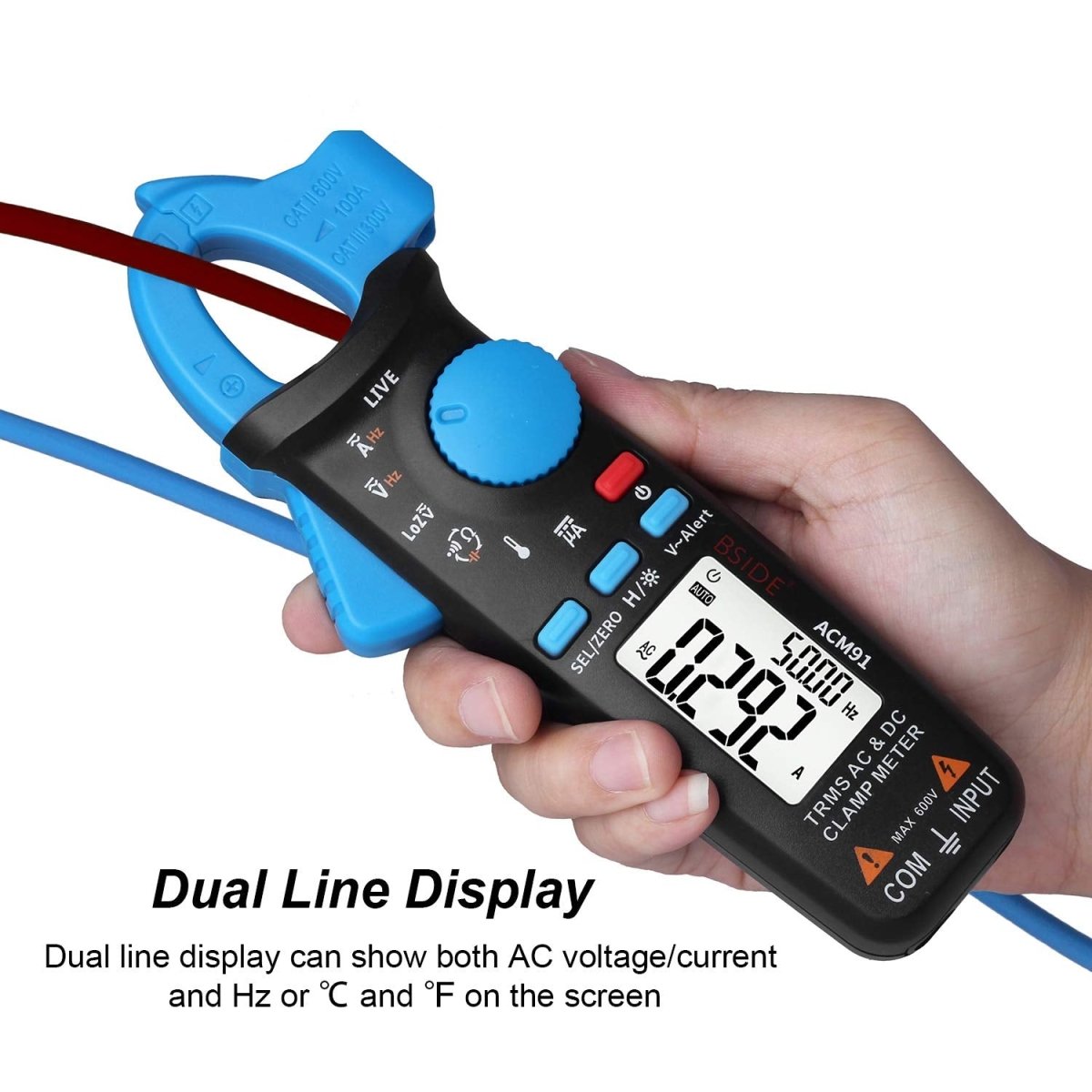

Dual Display Functionality: The innovative dual display allows you to view AC voltage/current alongside either frequency or temperature in Celsius and Fahrenheit, enhancing usability.
Ghost Voltage Detection: Utilize the Low Impedance (LoZ) mode to effectively pinpoint and eliminate phantom voltages that can lead to inaccurate readings.

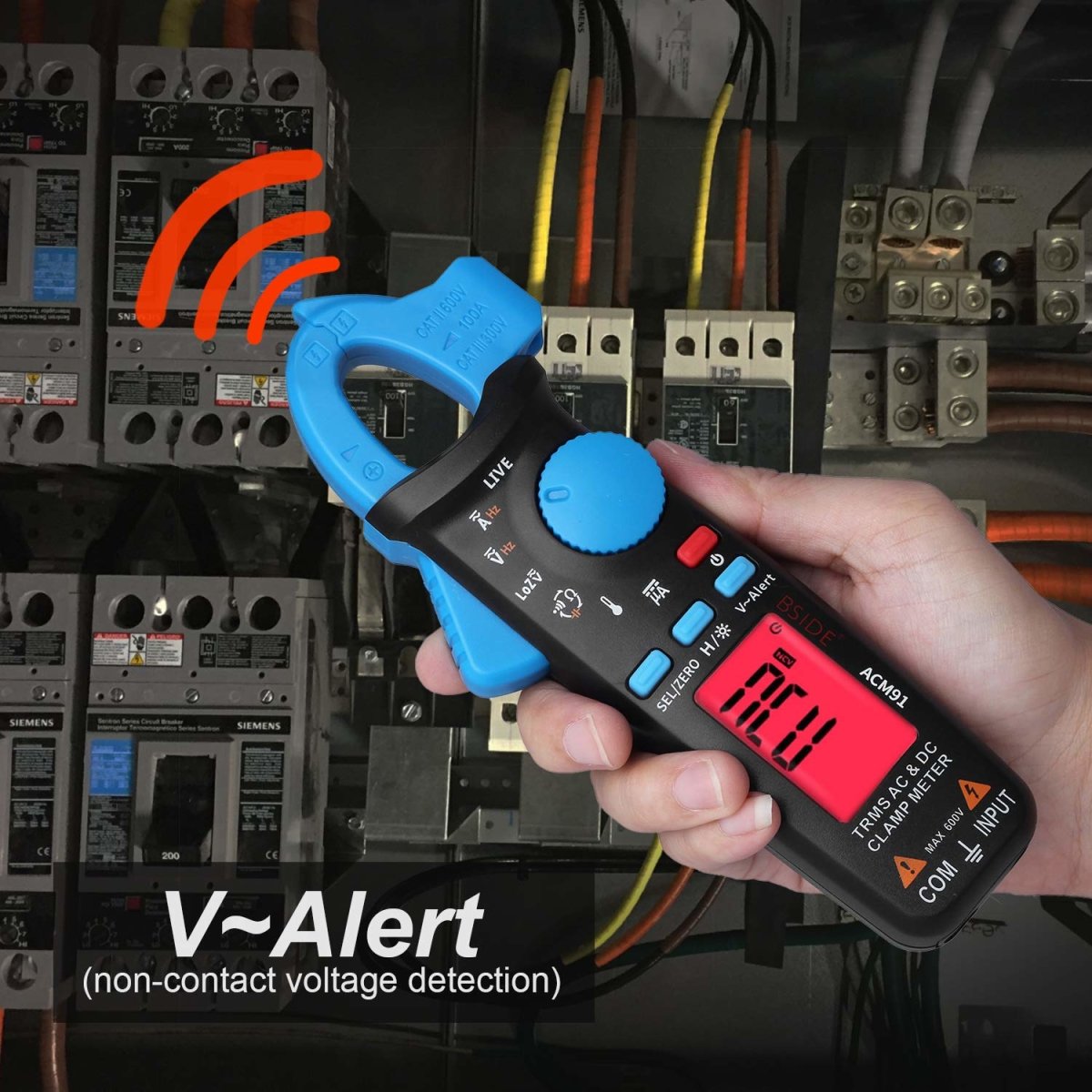

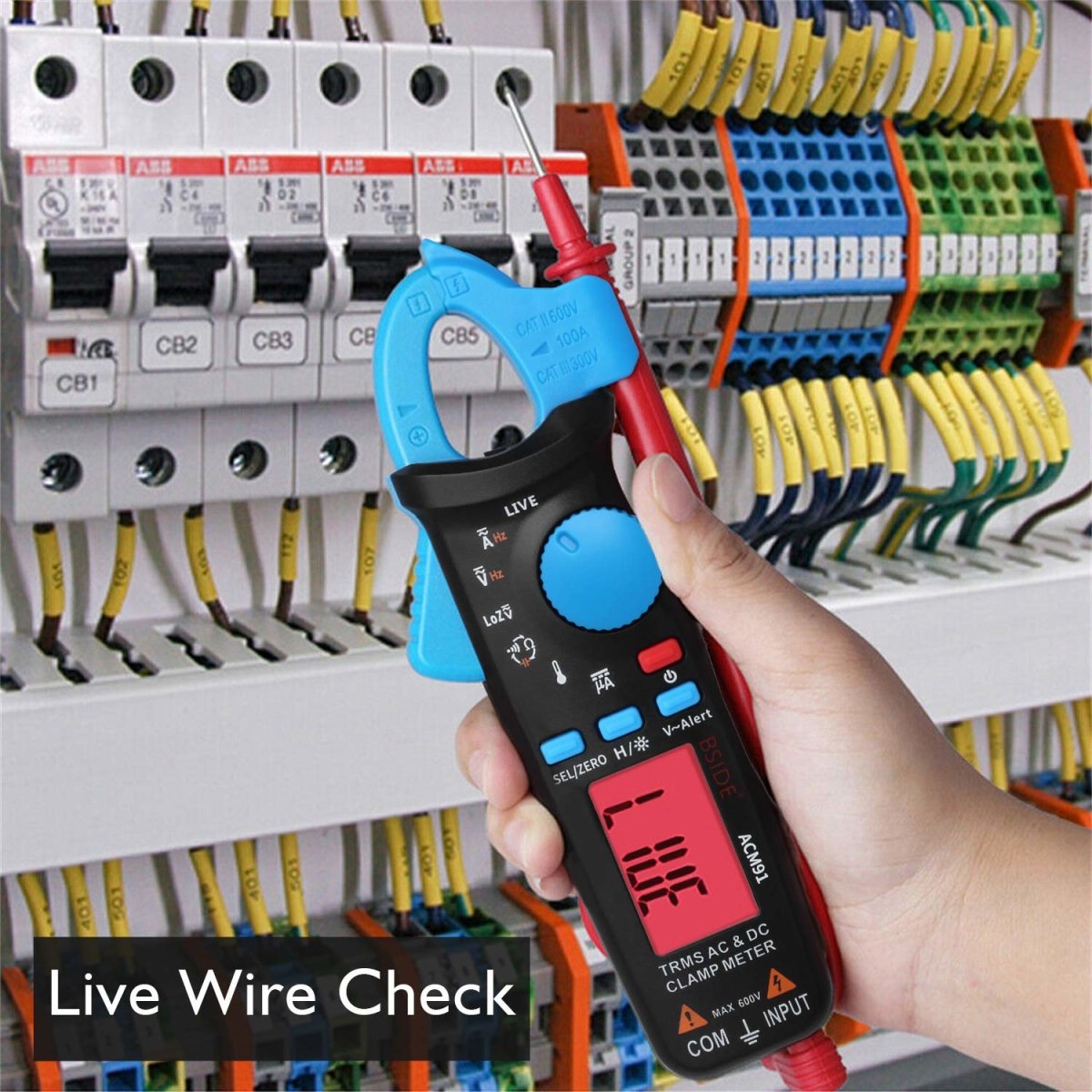

Convenient Non-Contact Testing: With the ability to activate the V-Alert (non-contact voltage detection) function across all modes, testing for live wires becomes effortless and safe.

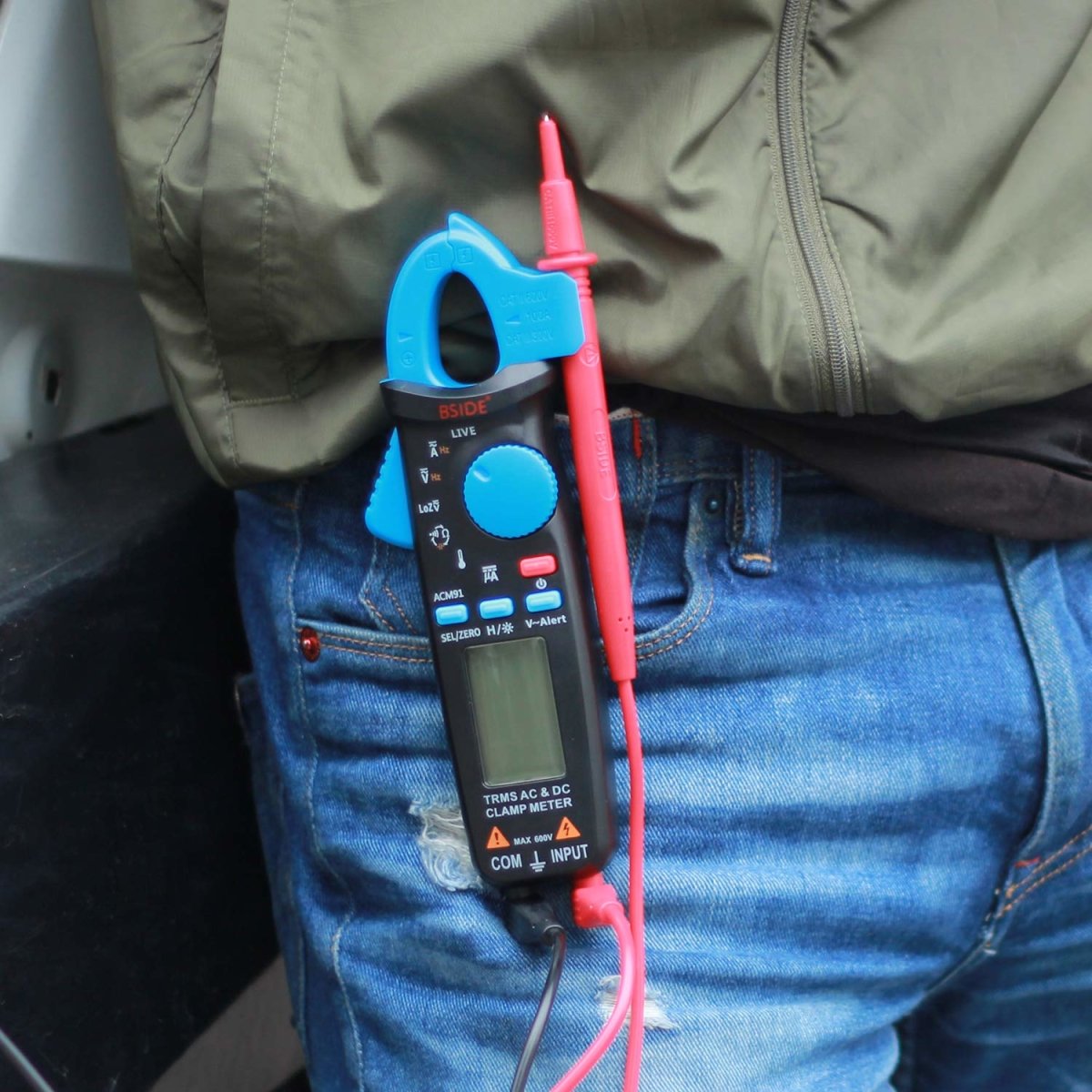

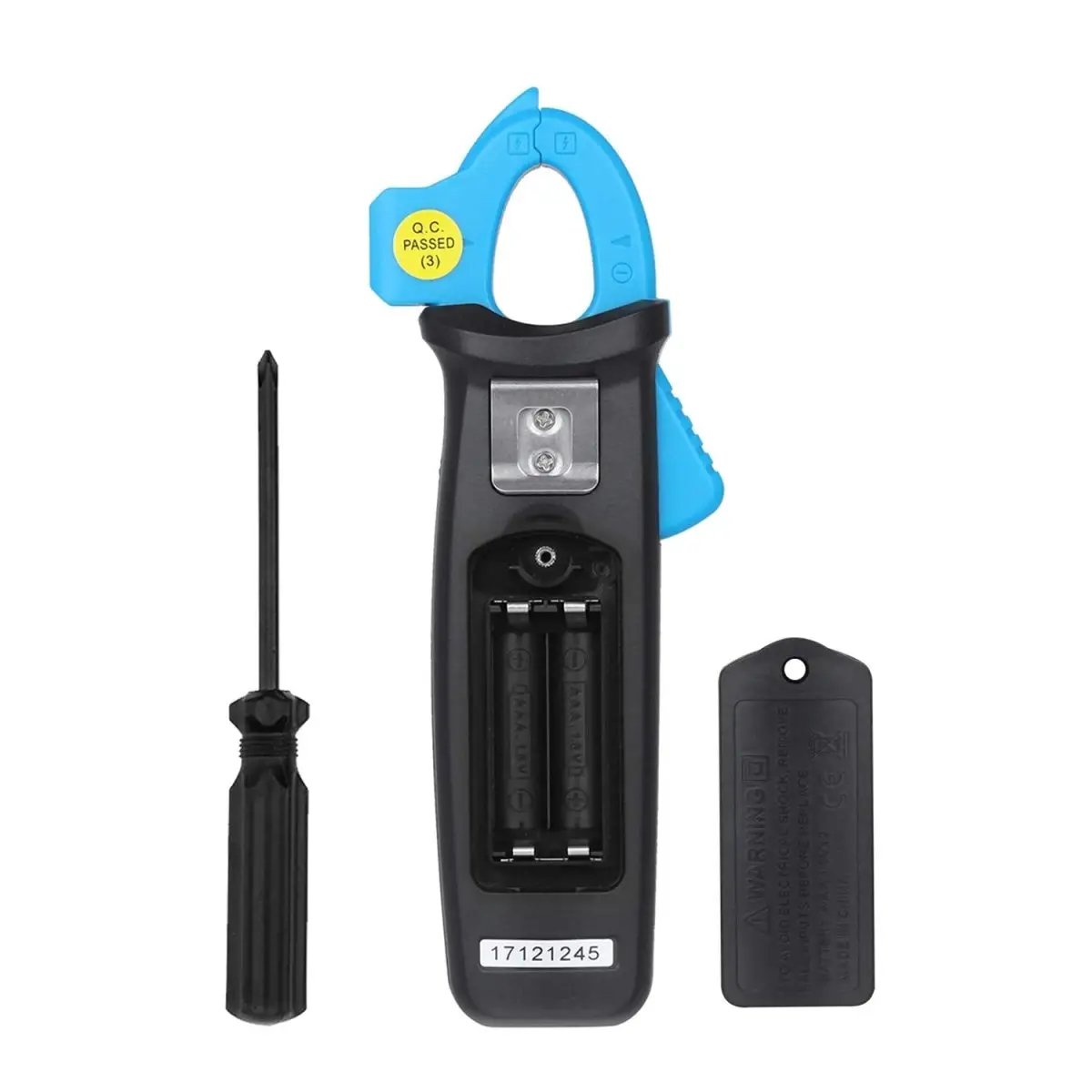

Portable Design: The integrated back clip enables easy carrying, making it simple to attach the meter to your belt or pocket for on-the-go access.

Key Features:

Measures both AC and DC currents with a minimum of 1mA through the jaws.

Capable of measuring microamps (minimum 0.1μA via terminals).

Measures AC and DC voltages.

Includes V-Alert for live-wire detection.

Measures frequency, temperature, resistance, continuity, and capacitance.

Low impedance voltage measurement capability.

Clamp-on frequency measurement function.

Features auto-ranging, auto power-off, data hold, low battery alert, and a backlight for easy reading in low light.

Meets IEC-61010-1, IEC-61010-2-030, IEC-61010-2-032, IEC-61010-2-033 standards.

Over-voltage protection rated at CAT III 300V, CAT II 600V, pollution degree II.

Specifications:

Display capacity: 6000 counts.

DC current ranges: 6A/60A/100A with resolutions of 0.001A/0.01A/0.1A ±(3.0%+5 counts).

DC current (μA): 0-200μA with a resolution of 0.1μA ±(0.8%+5 counts).

AC current ranges: 6A/60A/100A with resolutions of 0.001A/0.01A/0.1A ±(2.5%+5 counts).

DC voltage ranges: 6V/60V/600V with resolutions of 0.001V/0.01V/0.1V ±(1.0%+3 counts).

AC voltage ranges: 6V/60V/600V with resolutions of 0.001V/0.01V/0.1V ±(1.0%+3 counts).

Low impedance LOZ: Max 600V with a resolution of 0.1V.

Resistance measurement ranges:

600Ω/6kΩ/60kΩ/600kΩ/6MΩ with resolutions of 0.1Ω/0.001KΩ/0.01KΩ/0.1KΩ/0.001MΩ ±(1.0%+3 counts).

60MΩ with a resolution of 0.01MΩ ±(1.2%+20 counts).

Capacitance measurement: 600µF/6000µF with resolutions of 0.1µF/1µF ±(4.0%+3 counts).

Frequency measurement: 60Hz/1000Hz with resolutions of 0.1Hz/1Hz ±(1.0%+5 counts).

Frequency (by jaws): 60Hz/1000Hz with resolutions of 0.1Hz/1Hz ±(1.0%+5 counts).

Buzzer functionality: Continuity beeper sounds if resistance is below 30Ω.

Temperature measurement range: -20℃ to 500℃ with resolutions of 1℃/2℉ ±(2.0%+2 counts).

Jaw opening capacity: 20mm.

Power requirements: 1.5V (AAA) x 2 (not included).

Dimensions: 179 x 67 x 36 mm.

Weight: 137g.

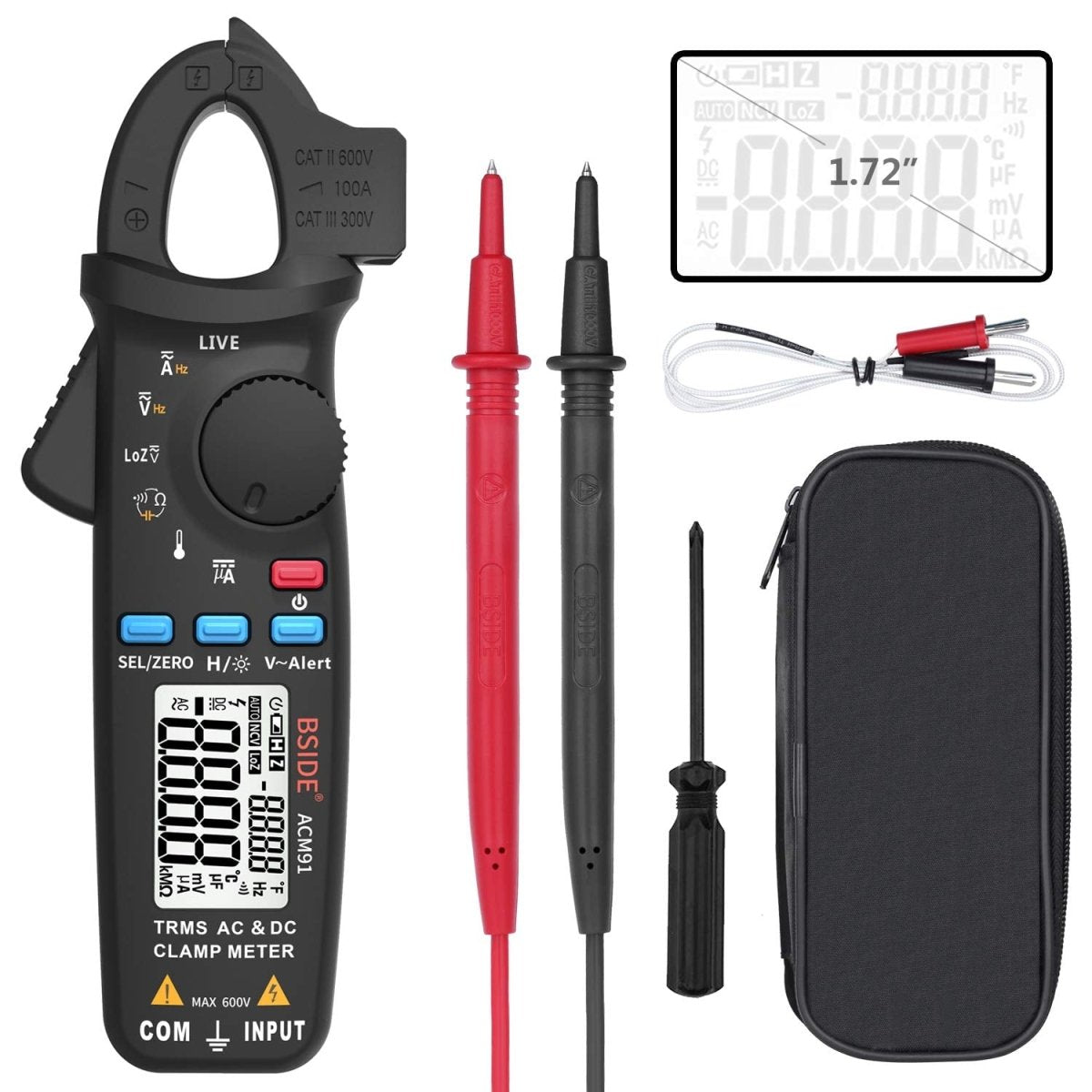

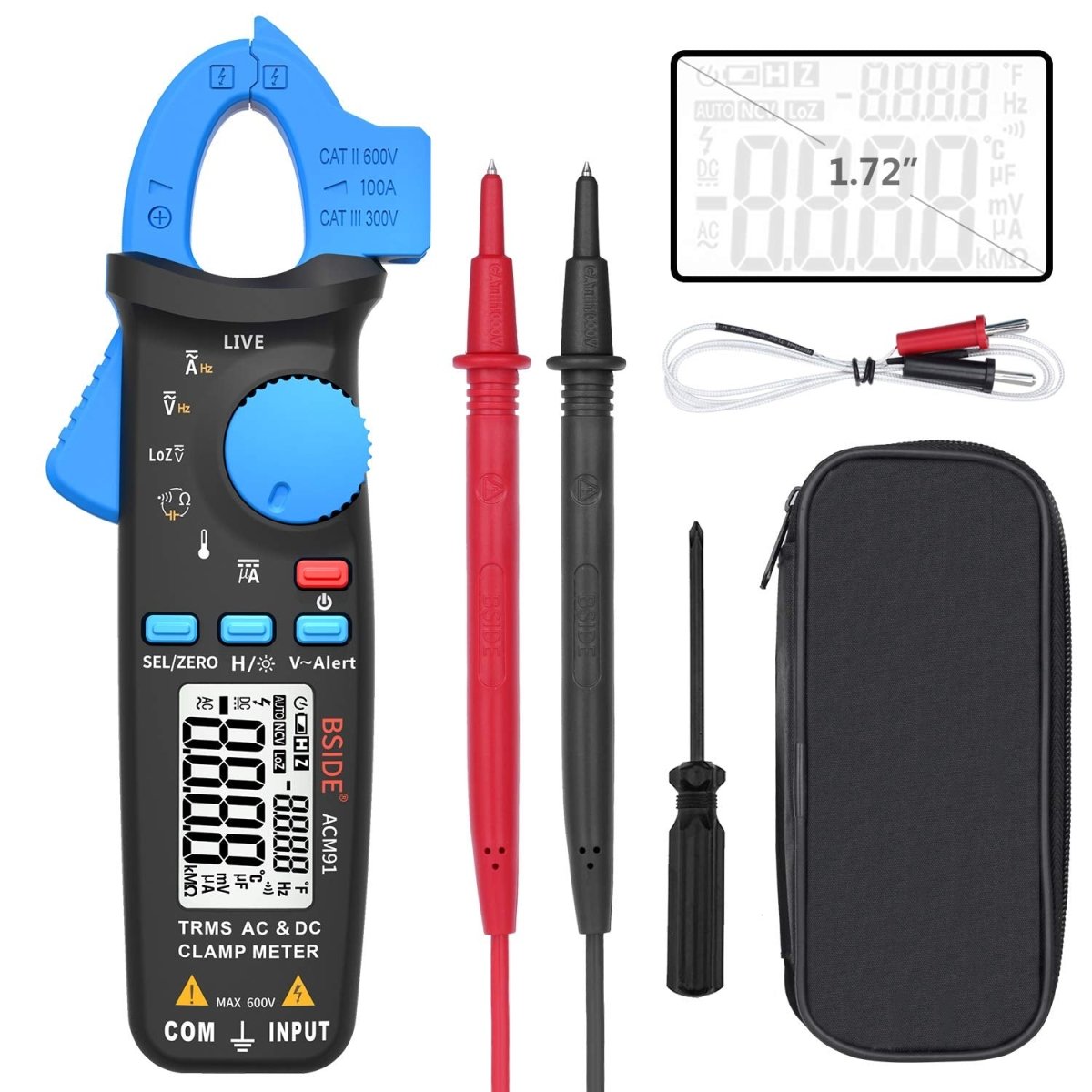

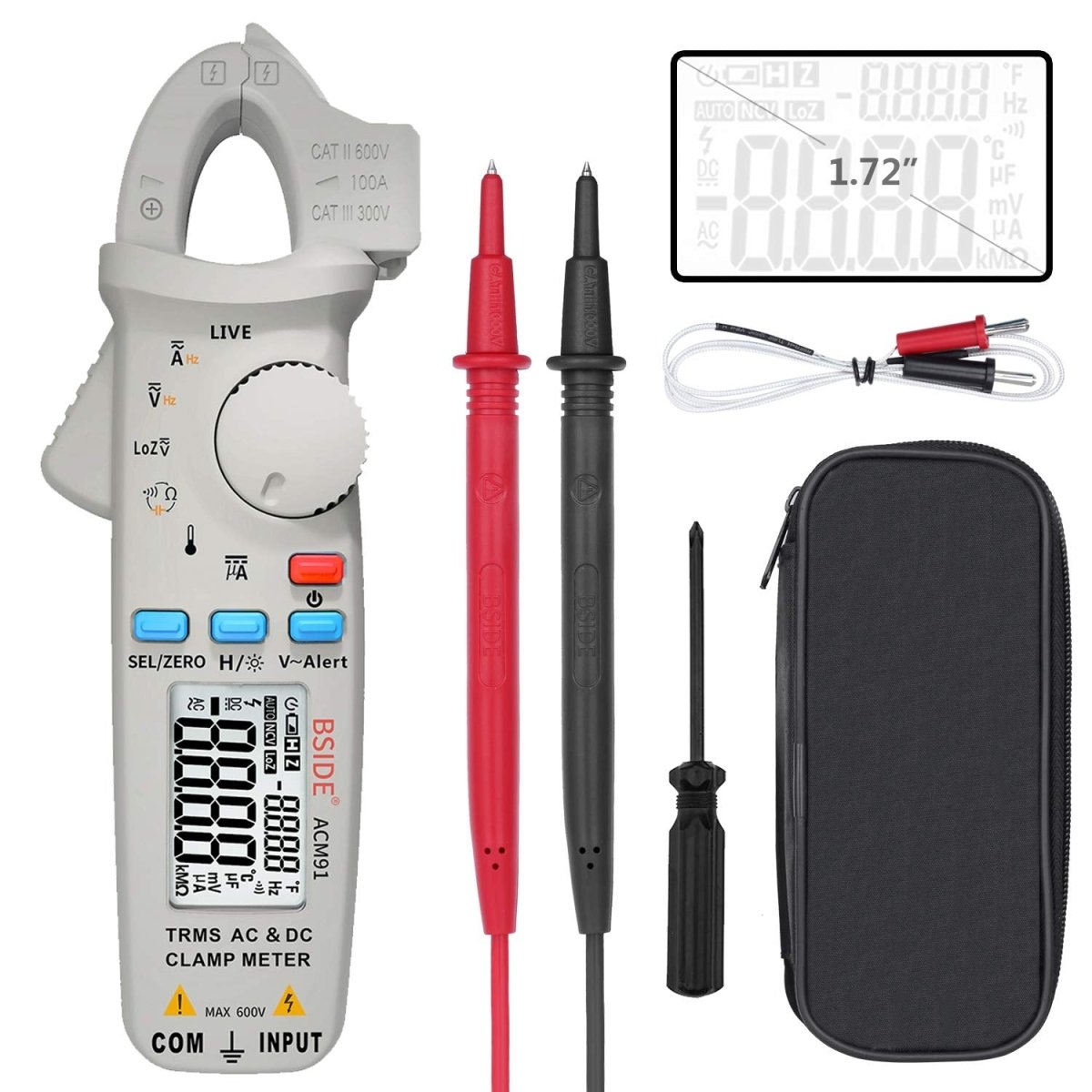

Included in the Package:

1 x Digital Clamp Meter.

1 x Set of Probes.

1 x Thermocouple.

1 x Carrying Case.

1 x Screwdriver.

1 x User Manual.

Please Note:

Due to aviation security protocols, batteries are not included with the product.
