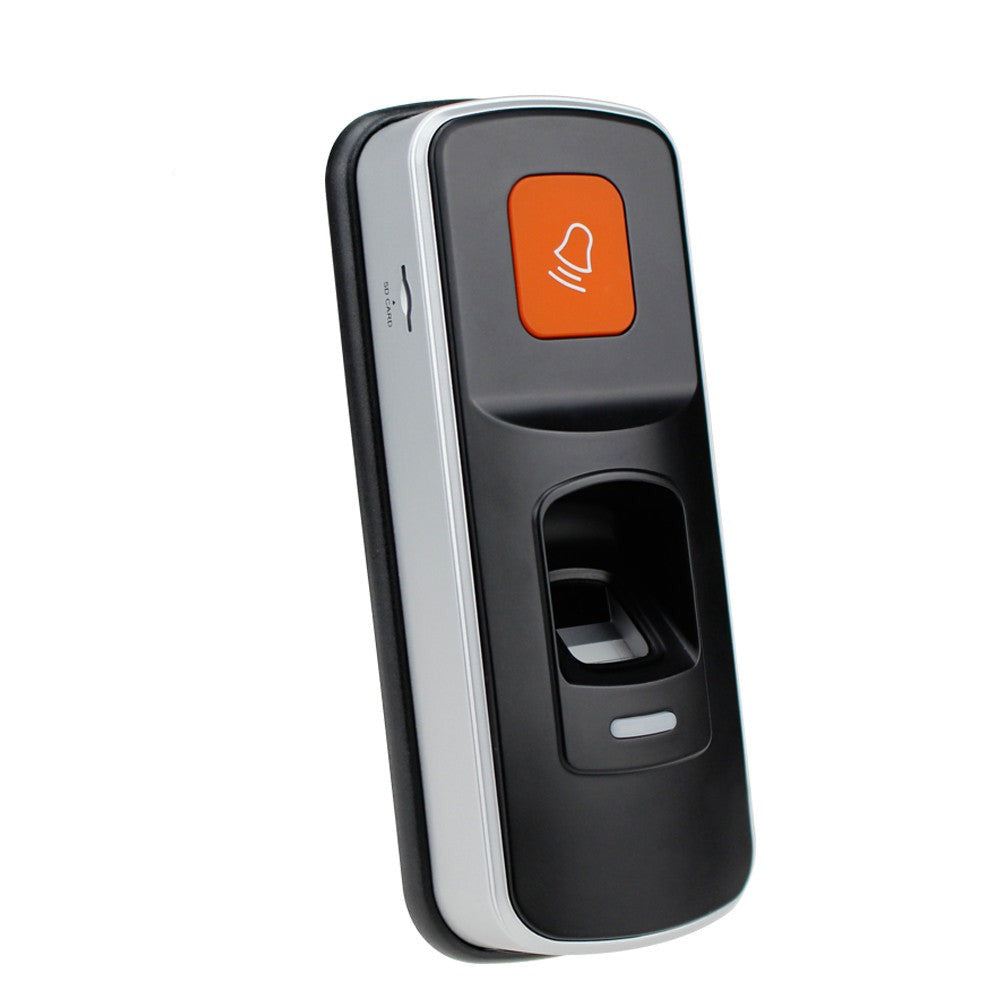

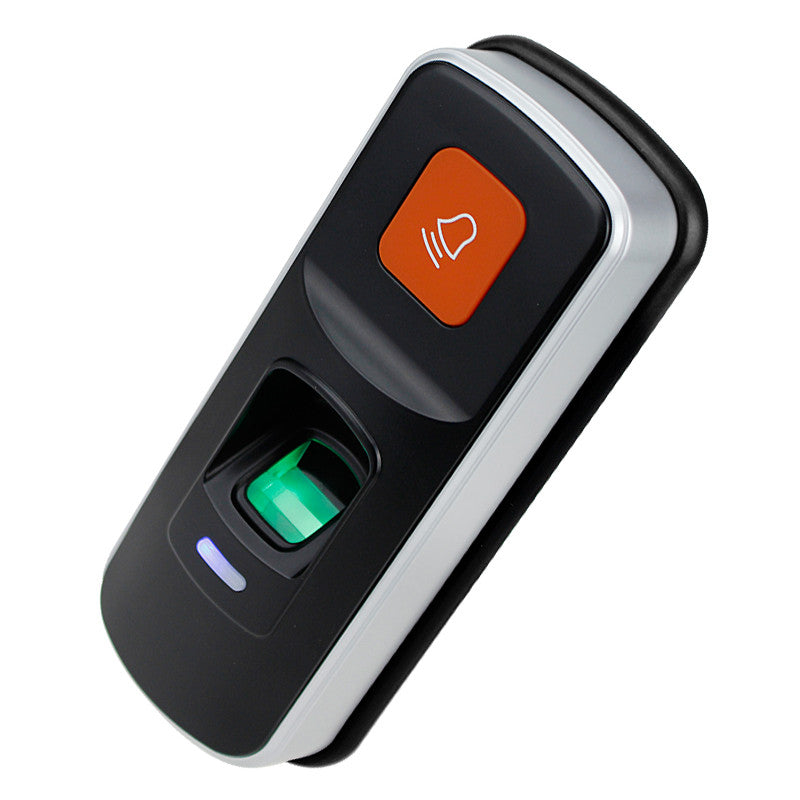

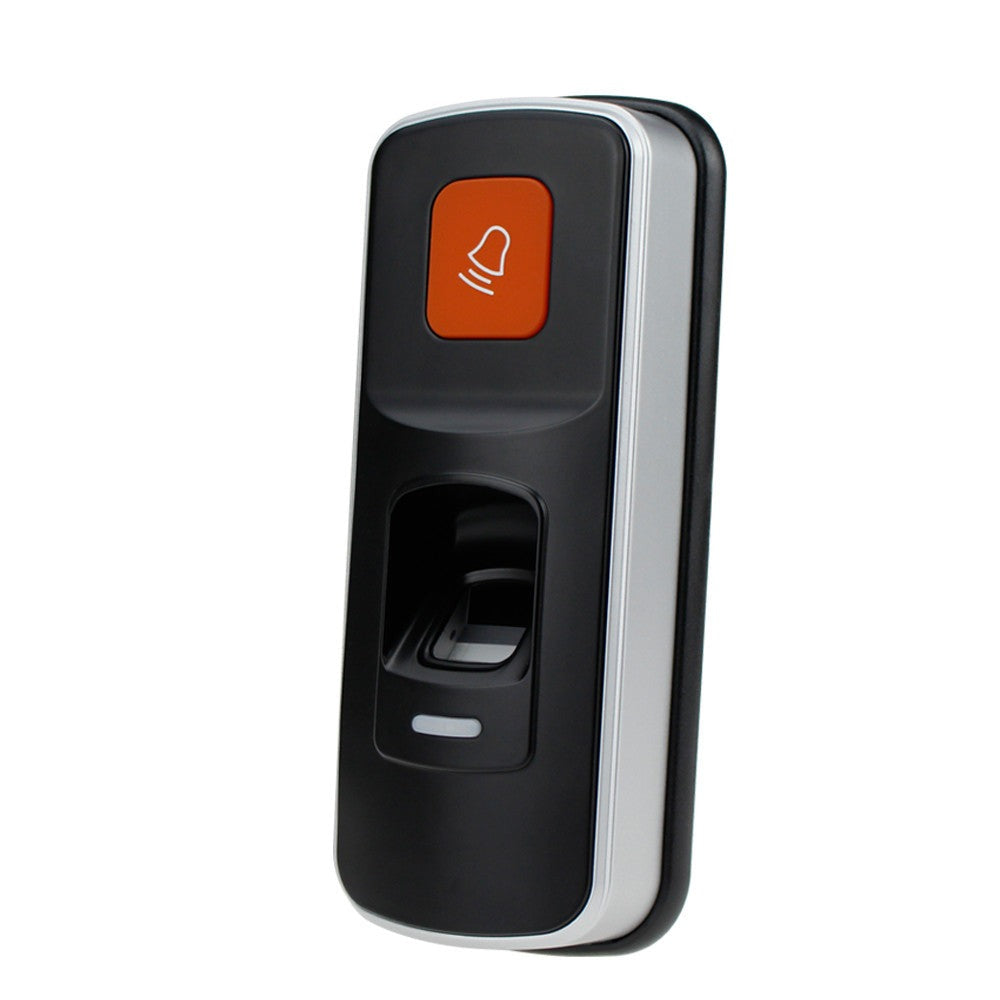

Smart Fingerprint and RFID Access Control System

Advanced Fingerprint Access Control with RFID Support

Experience top-tier security with a capacity for 1000 users and dual unlocking methods.

Product Specifications:

• Material: Premium ABS construction
• Fingerprint capacity: 1000 entries
• RFID card capacity: 1000 entries
• Operating frequency: 125KHz
• Resolution: 450 DPI for accurate recognition
• Identification time: Less than 1 second
• False Acceptance Rate (FAR): Less than 0.0001%
• False Rejection Rate (FRR): Less than 0.01%
• Card reading distance: 0-10CM
• Integrated card reader: EM or EM-compatible
• Identification methods: Fingerprint and RFID card
• Doorbell function: Supports wired doorbell installation
• Wiegand signal: WG26 input/output support
• Management card configuration: Yes
• Operating voltage: DC 12V
• Power consumption: ≤ 100mA
• Operating temperature: -0 °C to 45 °C
• Humidity range: 20% to 80%
• Product dimensions: 158 * 65 * 27mm

Product Features

360-Degree Fingerprint Recognition for Quick Access

This system can identify fingerprints from various angles swiftly and accurately.

Supports Dual Access Methods for Convenience

With the ability to store 1000 fingerprints and 1000 RFID cards, this system also features a doorbell button for added practicality.

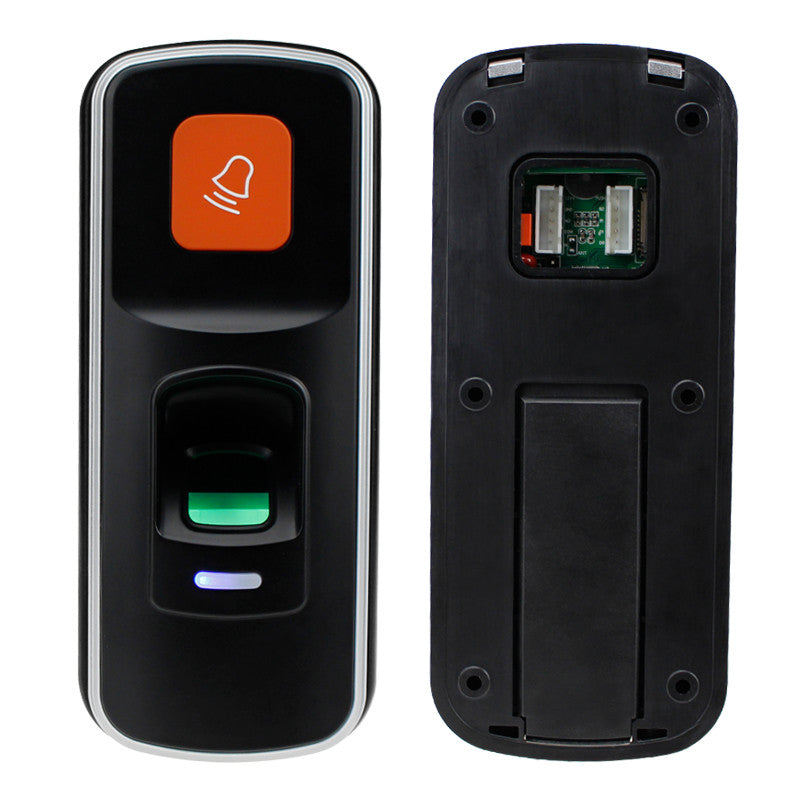

Easy Registration of Admin Fingerprints and Cards

The back panel (1+8 pinhole key) facilitates easy programming of fingerprint administrators, reference manual included for convenience!

No need for a computer connection.

Durable and Fire-Resistant ABS Shell

Elegantly designed with a doorbell option, allowing for easy installation of a wired doorbell.

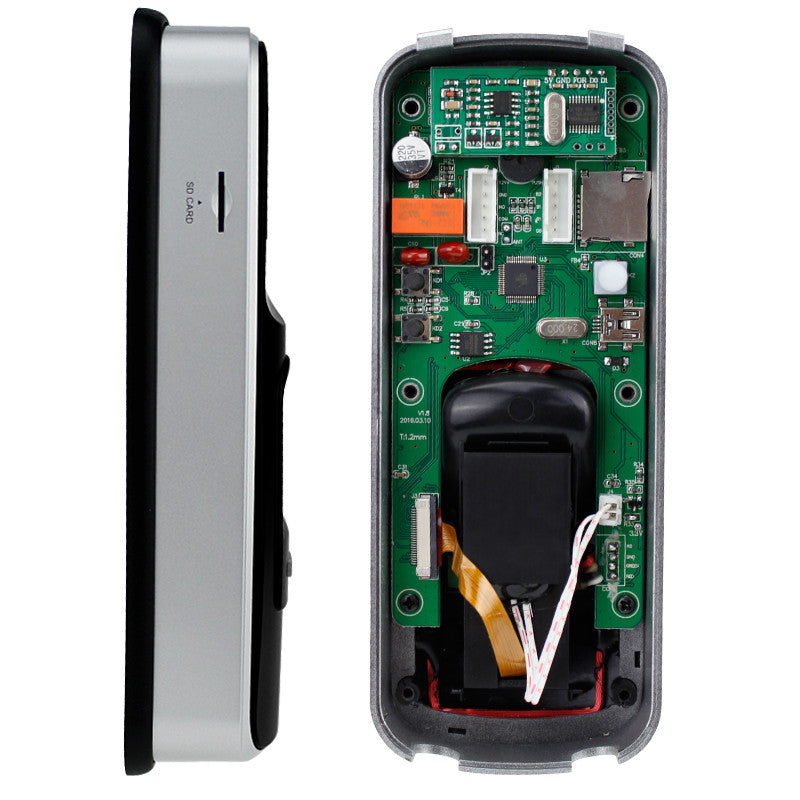

SD Card Support for Data Upload and Download

The SD card enables easy data management, allowing you to upload, download, and log user data directly.
Remember: SD card must be purchased separately, as it is not included with the device.

Includes RFID Cards and Key Fobs

Material: PVC / ABS
Operating frequency: 125KHz
Support: Read-only, write not supported.
Reading distance: 0-10cm
Each card has a unique ID number printed on it.
Key fob color: Default is blue; if you prefer a different color, please leave us a message.
Quantity: 5 cards and 5 key fobs included.

Wiring Diagram

(Note: Power supply, lock, and exit button are not included in the package and must be purchased separately.)
